HIGH Z-S Series Bench-top CNC Router / Milling Machines



The High Z-S Series are an extremely robust and versatile bench-top CNC platform with an accuracy of 0.02mm and capable of many different applications from engraving to plasma cutting as well as engraving photo realistic pics on granite with the GranitoGrav module. See all add-on accessories here:

There are two types of benchtop machine, the Standard series with lead screws on all axis and the Turbo with Ball screws on the X and Y axis. The ball screw technology has an advantage with higher traverse speed capability and lower maintenance input required over time. The accuracy and cutting power are the same for both models.

The GranitoGrav module for picture engraving on granite and tiles etc. requires the Turbo model.





STANDARD S-400





High-Z S - 400 CNC Router/Milling machine

Drive: 4 stepping motor by Nanotec with 1600 steps/rev (1/8 Step)

2 motors for constant tension and compression during milling operation on X-Axis

Guide rails X and Y Axis 20 mm ground and hardened surface

Ball bearings at both sides of trapezium spindles Tr. 12x3 mm flank lead

Feed through of long work pieces possible because of an open ended X-axis

Traverse speed rapid feed max. 2000 mm/min

Technical dissolution 0,000187 mm (1/8 Step)

Table size / clamping area: 730 x 400 mm

Traverse Paths: X=400 mm; Y=300 mm; Z= 110 mm

Reference- and limit switch on all axes

Double secured emergency stop button

Energy chain for clean cabling

Total dimensions incl. motors: L x W x H = appr.730 x 520 x 500mm

Milling Motor anchorage: Euroneck Ø43mm

Incl. Software PC-NC or WIN PCNC Light

Modular frame for universal application

Weight appr.31 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 81 x 58 x 70      50 kg

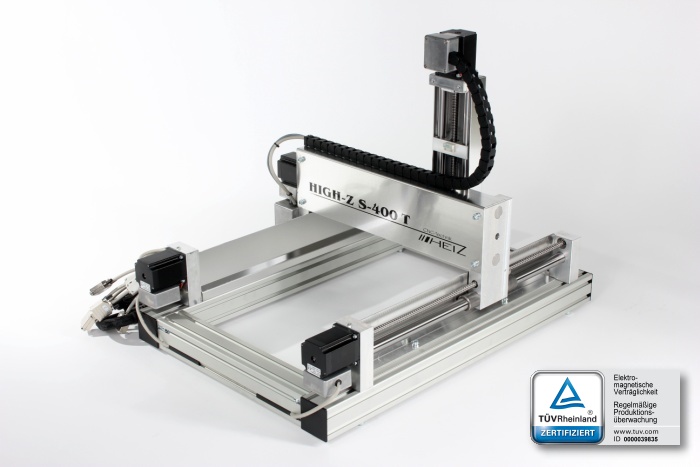

TURBO S-400/T





High-Z S - 400/T CNC Router/Milling machine

Drive : 4  Nanotec Stepper motors with 1600 steps/rev (1/8 Step)

2 motors for constant traction and compressive forces while milling on the X-Axis

Guide rails X and Y Axis 22mm, Z= 16mm, ground and with 61hrc hardened surface

Feed through of long work pieces possible because of an open ended X-axis

Ball bearings at both sides of ball screws on X and Y axis

Traverse speed max. 12000 mm/min

Technical resolution 0,00625 mm ( 1/8 step )

Clamping area 730 x 400 mm

Traverse paths: X=400 mm; Y=300 mm; Z= 110 mm

Reference / end switches on all axis

Double safe emergency shut down

Energy chains for neat cable conduit

Total dimensions incl. motors : L x B x H = approx. 700x520x500mm

Milling motor anchorage:  Euroneck Ø 43mm

Incl. software  WIN PCNC Light

Modular frame for universal application

Weight approx. 31 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 81 x 58 x 70      50 kg

STANDARD S-720





High-Z S - 720 CNC Router/Milling machine

Drive: 4 stepping motor by Nanotec with 1600 steps/rev (1/8 Step)

2 motors for constant tension and compression during milling operation on X-Axis

Guide rails X and Y Axis 20 mm ground and hardened surface

Ball bearings at both sides of trapezium spindles Tr. 12x3 mm flank lead

Feed through of long work pieces possible because of an open ended X-axis

Traverse speed rapid feed max. 2000 mm/min

Technical dissolution 0,000187 mm (1/8 Step)

Table size / clamping area: 1050 x 520 mm

Traverse Paths: X=720 mm; Y=420 mm; Z= 110 mm

Reference- and limit switch on all axes

Double secured emergency stop button

Energy chain for clean cabling

Total dimensions incl. motors: L x W x H = appr.1070x690x500mm

Milling Motor anchorage: Euroneck Ø43mm

Incl. Software PC-NC or WIN PCNC Light

Modular frame for universal application

Weight appr.41 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 115 x 75 x 70      65 kg

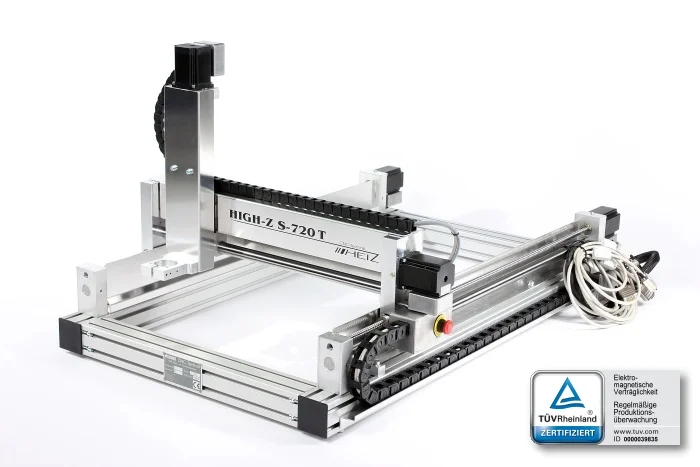

TURBO S-720/T





High-Z S - 720/T CNC Router/Milling machine

Drive : 4  Nanotec Stepper motors with 1600 steps/rev (1/8 Step)

2 motors for constant traction and compressive forces while milling on the X-Axis

Feed through of long work pieces possible because of an open ended X-axis

Guide ways X and Y Axis 22mm, Z= 16mm, ground and with 61hrc hardened surface

Ball bearings at both sides of ballsrcews on X and Y axis

Traverse speed max. 12000 mm/min.

Technical resolution 0,00625 mm ( 1/8 step )

Clamping area 1050 x 520 mm

Traverse paths : X=720 mm; Y=420 mm; Z= 110 mm

Reference / end switches on all axis

Double safe emergency shut down

Energy chains for neat cable conduit

Total dimensions incl. motors : L x B x H=approx.1070x690x500mm

Milling motor anchorage: Euroneck Ø 43mm

Incl. software  WIN PCNC Light

Modular frame for universal application

Weight app. 41 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 115 x 75 x 70      65 kg

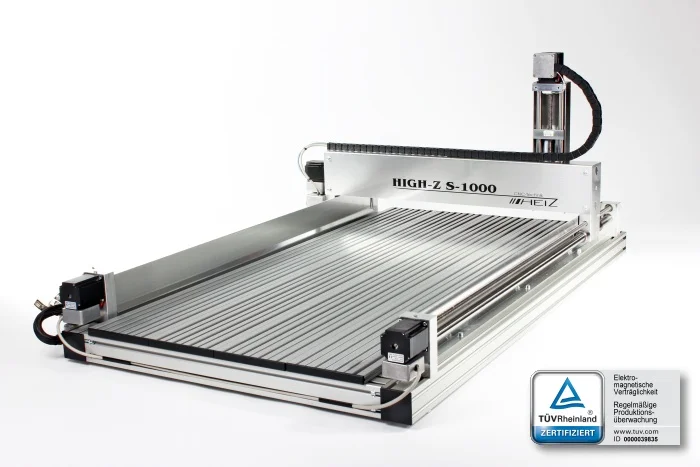

STANDARD S-1000





High-Z S - 1000 CNC Router/Milling machine

Drive: 4 stepping motor by Nanotec with 1600 steps/rev (1/8 Step)

2 motors for constant tension and compression during milling operation on X-Axis

Guide rails X and Y Axis 20 mm ground and hardened surface

Ball bearings at both sides of trapezium spindles Tr. 12x3 mm flank lead

Feed through of long work pieces possible because of an open ended X-axis

Traverse speed rapid feed max. 2000 mm/min

Technical dissolution 0,000187 mm (1/8 Step)

Table size / clamping area: 1330 x 700 mm

Traverse Paths: X=1000 mm; Y=600 mm; Z= 110 mm

Reference- and limit switch on all axes

Double secured emergency stop button

Energy chain for clean cabling

Total dimensions incl. motors: L x W x H = appr.1350x840x500mm

Milling Motor anchorage: Euroneck Ø43mm

Incl. Software PC-NC or WIN PCNC Light

Modular frame for universal application

Weight appr.51 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 143 x 90 x 70      80 kg

TURBO S-1000/T





High-Z S - 1000/T CNC Router/Milling machine

Same as HIGH-Z S-720 and S-400 but:

Drive : 4  Nanotec Stepper motors with 1600 steps/rev (1/8 Step)

2 motors for constant traction and compressive forces while milling on the X-axis

Feed through of long work pieces possible because of an open ended X-axis

Guide ways X and Y Axis 22mm, Z= 16mm, ground and with 61hrc hardened surface

Ball bearings at both sides of  ballscrews on X and Y axis

Traverse speed max. 12000 mm/min

Technical resolution 0,00625 mm ( 1/8 step )

Clamping area 1300 x 700 mm

Traverse paths: X=1000 mm; Y=600 mm; Z= 110 mm

Reference / end switches on all axis

Double safe emergency shut down

Energy chains for neat cable conduit

Total dimensions incl. motors : L x B x H=approx. 1350x840x500mm

Milling motor anchorage: Euroneck Ø 43mm

Incl. software WIN PCNC Light

Modular frame for universal application

Weight app. 51 kg

Complete machine Includes 5 driver microstep controller 5 x 3 A

Freight dimensions 143 x 90 x 70      80 kg

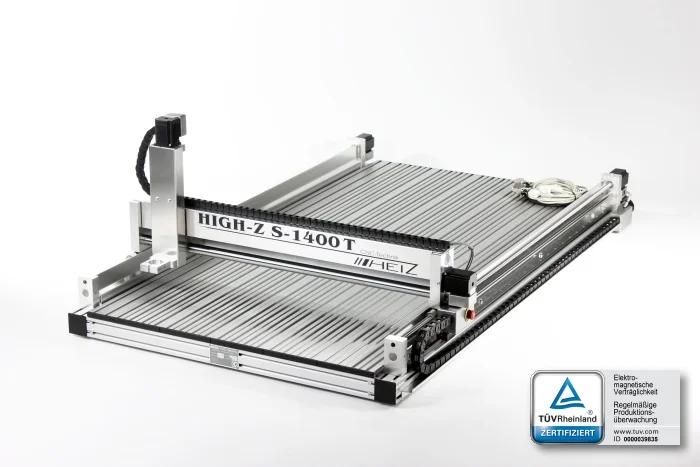

TURBO S-1400/T





High-Z S - 1400/T CNC Router/Milling machine

Drive : 4  Nanotec Stepper motors with 1600 steps/rev (1/8 Step)

2 motors for constant tension and compression during milling operation on X-Axis

Guide ways X 22mm and Y axle 30 mm / Z Axis 16mm, grinded and with 61hrc hardened surface

Additional linear guide rails 15mm from HIWIN for the X Axis

Ball bearings at both sides of trapezium spindles Tr. 16x4 mm flank lead

Feed through of long work pieces possible because of an open ended X-axis

Traverse speed of rapid feed max. approx.12000 mm/min

Technical resolution 0,0025 mm ( 1/8 Step )

Table size / clamping area:1730 x 880 mm

Traverse Paths: X=1400 mm; Y=800 mm; Z= 110 mm

Reference- and limit switch on all axes

double secured emergency stop button

Energy chain for clean cabling

Total dimensions incl. motors : LxWxH = appr.1750x1040x500mm

Milling Motor anchorage: Euroneck Ø43mm

Incl. Software PC-NC or WIN PCNC Light

Modular frame for universal application

Complete machine incl. 5 channel controller 5 x 3 A

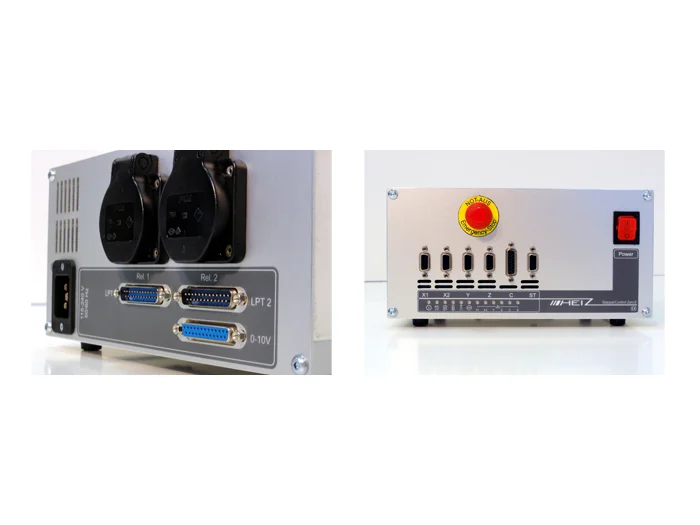

NEW "Zero 3" Stepper controller for High Z series available now.



The New ZERO 3 stepper controller unit adds more power and speed capability with better system protection than ever before on our High Z Series platforms. The new controllers have turned our machines into SUPER CNC Machines!

More power and speed than you can imagine !



Microstep motor stepper controller :

- 5 channel controller



- Power up to 3 Amps per channel- 5 connections motor, 1 connection for limit and emergency switches

- Connection via PC-parallel port (USB optional)

- Microstep controller 1/8 Step resolution

- "Sleep-Function" for energy saving in standby mode

- New LED displays for connectivity status

- New Parallel connectors for HF spindles and other accessories

- Power supply Unit

- New current protection functions

- All connections for motors and end switch -  9 Pol sub D.

- 5th channel stepping motor controller available for an additional 4th axis

- Dipswiches for operation on 2 Amp machines up to end Jan 2012 (backward compatible)

New

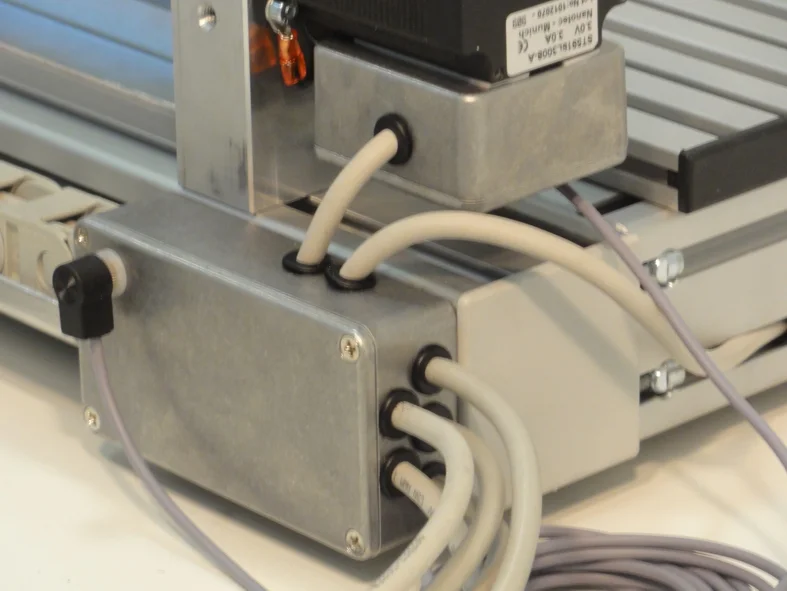

RF noise suppression for High Z-S series CNC milling/routing machines. Aluminium junction boxes, grounded to CNC machine frame. Filters on comunication cables!

This ensures cleaner and smoother operation than ever before!

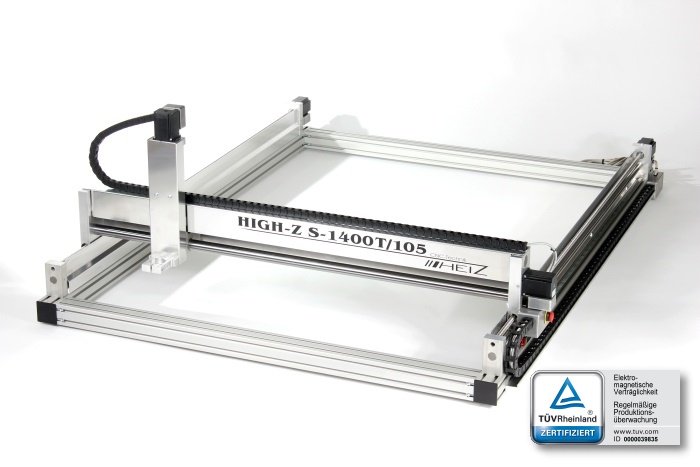

Turbo S1400/105T

Turbo S1400/105T





High-Z S - 1400/105 T CNC Router/Milling machine

Also available as the PlasCut 1350 version

Drive : 4  Nanotec Stepper motors with 1600 steps/rev (1/8 Step)

2 motors for constant tension and compression during milling operation on X-Axis

Guide ways X 22mm and Y axle 30 mm / Z Axis 16mm, grinded and with 61hrc hardened surface

Additional linear guide rails 15mm from HIWIN for the X Axis

Ball bearings at both sides of trapezium spindles Tr. 16x4 mm flank lead

Feed through of long work pieces possible because of an open ended X-axis

Traverse speed of rapid feed max. approx.12000 mm/min

Technical resolution 0,0025 mm ( 1/8 Step )

Table size / clamping area:1730 x 1100 mm

Traverse Paths: X=1400 mm; Y=1050 mm; Z= 110 mm

Reference- and limit switch on all axes

double secured emergency stop button

Energy chain for clean cabling

Total dimensions incl. motors : LxWxH = appr.1750x1040x500mm

Milling Motor anchorage: Euroneck Ø43mm

Incl. Software PC-NC or WIN PCNC Light

Modular frame for universal application

Complete machine incl. 5 channel controller 5 x 3 A
