Tool length sensor pad

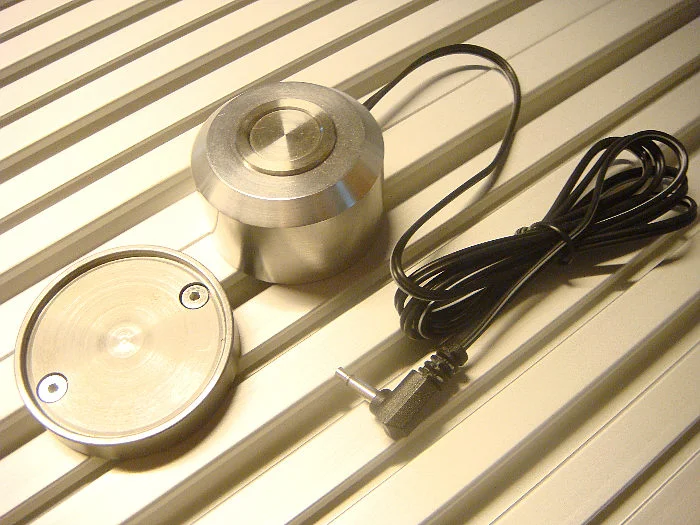

The Tool Length Sensor has a magnetic base and clips into its holder which is fastend to the T-groove bed using two T-groove nuts. The Software set up is described in the WinPCNC user manual. The tool length sensor will allow the software to automaticaly adjust the Z axis zero point when doing a tool change during a CNC operation, eliminating the need to manualy reset the Z zero on the work piece.
