6 Tool Magazine Tool Changing System




Tool Change system requires the following setup


HF Spindle WZW104, 5.000-28.000rpm, 600 watt with tool changing functionality Incl. 2 collet nuts

HF Spindle WZW104, 5.000-28.000rpm, 600 watt with tool changing functionality Incl. 2 collet nuts

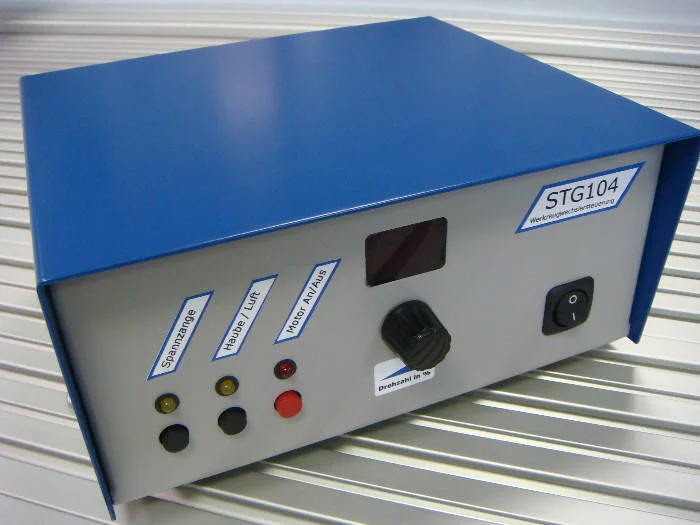

Tool change system STG104 controller, integrated pneumatic connections for dust cover and mollet with spindle inverter and speed control

Tool change system STG104 controller, integrated pneumatic connections for dust cover and mollet with spindle inverter and speed control

6 tool magazine , dust-protected, pneumatic operating pressure 8 bar, with integrated tool length sensor.

6 tool magazine , dust-protected, pneumatic operating pressure 8 bar, with integrated tool length sensor.

Collet nut for ER11 collet , for WZW104 tool change system (Requires extra 4 to fill magazine)

Collet nut for ER11 collet , for WZW104 tool change system (Requires extra 4 to fill magazine)

Collet Set for WZW104 spindle, 1mm-7mm, in 0,5mm steps, 13 pieces

Collet Set for WZW104 spindle, 1mm-7mm, in 0,5mm steps, 13 pieces

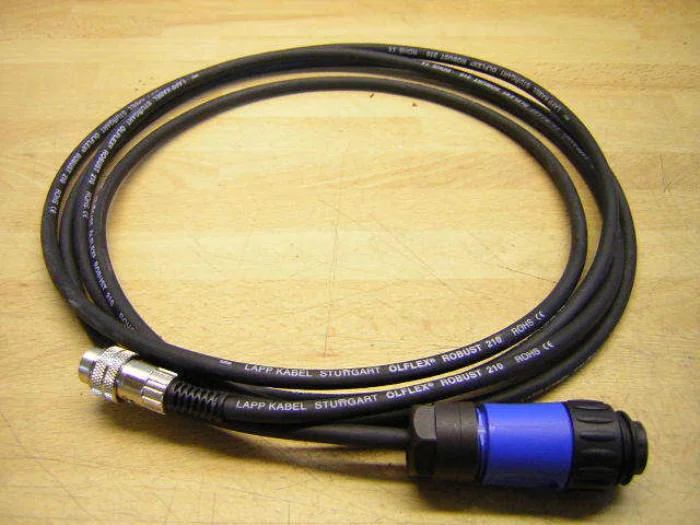

Cable from the WZW104 spindle to the controller 2m

Cable from the WZW104 spindle to the controller 2m

Price R29962.00 Excl. Vat for complete system




OR
Consider the budget alternative

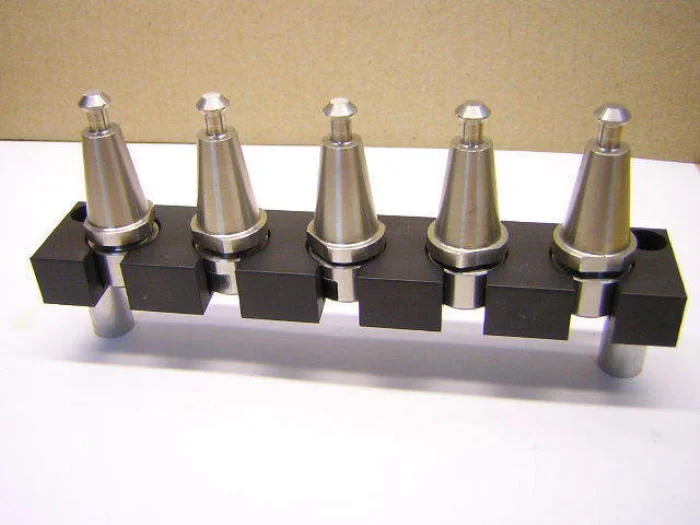

5 Tool magazine (Requires separate Tool length sensor pad)

5 Tool magazine
(Requires separate Tool length sensor pad)
